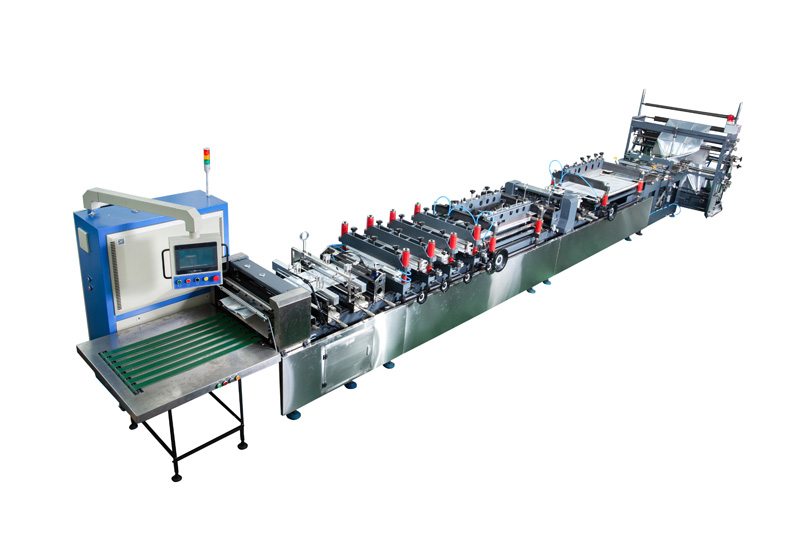

| Model | SKB450-Z High Speed Center Seal Bag Making Machine | |||||
| Optional Model | 450 | 600 | Customization | |||
| Film Material | CPP,PET,OPP,PAPER and all kinds of laminating films | |||||
| Film Size | Max. Width：900mm、Max. Diameter：φ800mm | |||||
| Rewinding Form of Film | Horizontal Film Axis Type • Closed Palm Feeding Mode • Tension Control Magnetic Brake, Non-stop unwinding matching Automatic Joint Detection Function AC Motor Driving System with inverter Detection of printing color label by color label sensor |
|||||
| Bag-making Function | Single line center seal，Single line four side seal，Single line center seal with side gusset | |||||
| Bag-making speed | 200shots/min | Unwind line Speed： | 40m/min | |||
| Bag-making Size | Bag length：80-400mm，Bag width：50-450mm，Gusset depth：20-70mm | |||||
| Skip feed function | 400 mm for one time, more than 400mm, used skip feed feature, maximum is 6times | |||||
| Bad exclusion function | At the beginning of operation, in order to prevent the incorporation of bad heat sealing bags, a film with arbitrary distance is set from the cutting knife to remove double feeding. | |||||
| Electrical Matching | Host Frequency：1set，3KW(SEW) Traction servo motor：2set，1.5KW—1set，1.0KW—1set. Feeding AC motor：1set，0.4KW—1set. Feeding inverter：1set，0.75KW—1set. |
|||||
| Electrical Matching | Total Power： 32KW，380V，50HZ |
Cooling Water： 10L/min |
Air Pressure： 0.6MPa（6Kgf/）cm² |
|||
| Machine Dimensions | L*W*H：11000*1500*1700mm （By the selected function to determine the final size） | |||||
| Option function | three side seal | Double cutter (including round corner punches). | ||||
| Main web with non-stop function | Fully automatic coffee valve | |||||
| Fully automatic on-line die cutting | CCD Cutter | |||||
| New Model | Ultra-high speed hostless center seal bag making machine (300 shots/ min) Automatic Detection Bag Strapping Machine |
|||||
